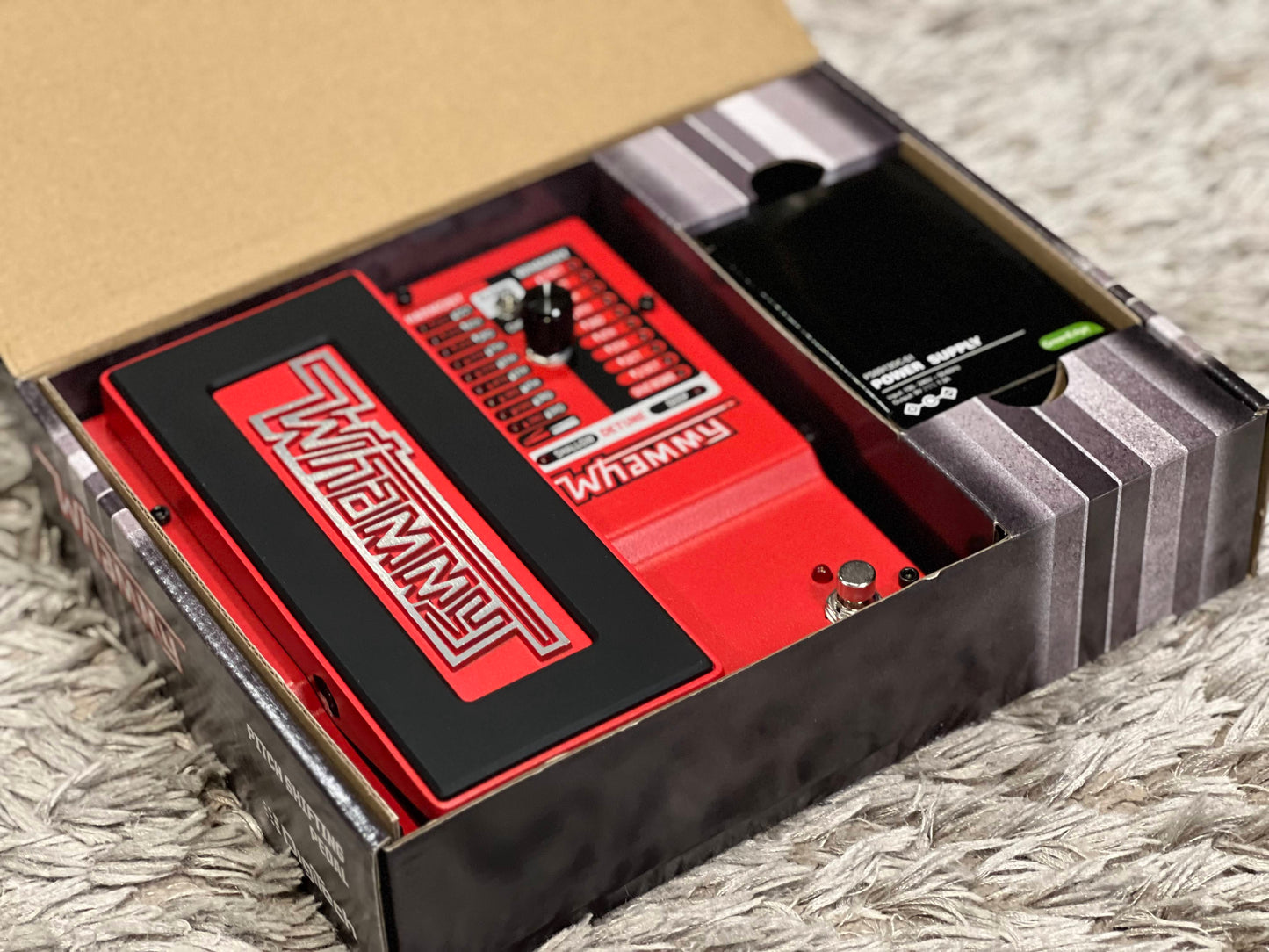

Digitech Whammy V-01 - 2 Mode Pitch Shift Effect With True Bypass

Digitech Whammy V-01 - 2 Mode Pitch Shift Effect With True Bypass

Regular price Rp 3.690.000,00 IDR
Regular price Sale price Rp 3.690.000,00 IDR
Sale Sold out
Shipping calculated at checkout.

Whammy Pitch Bending Effects

The DigiTech Whammy brings you the same hair-raising “dive bomb” effects, gripping pitch bends and lightning harmony shifts you are looking for plus a few new twists. Bend entire chords with the new chordal pitch shifting setting, and execute classic single note bends.

Classic Whammy Interface

The Whammy interface features the same legacy Whammy pitch bending options you’re accustomed to along with some additional pitch bend settings from the Whammy DT.

MIDI In for Remote Control of Whammy Effects

The Whammy features a MIDI input for receiving incoming MIDI data. MIDI messages can select a Whammy or Drop Tune effect and set whether these effects are in an active or bypassed state. MIDI CC messages can then be used to control the Whammy Expression Pedal position.

General Specifications :

SAMPLE RATE : 44.1 kHz
FREQUENCY RESPONSE : 20 Hz to 20 kHz
SIGNAL TO NOISE RATIO : > -105 dB (A weighted); ref = max level, 22 kHz bandwidth
THD : 0.004% @ 1 kHz; ref = 1 dBu w/ unity
A/D CONVERSION : 24 bit
D/A CONVERSION : 24 bit
POWER CONSUMPTION : 2.4 Watts (< 265 mA @ 9 VDC)
POWER ADAPTER : 9 VDC External Adapter
TRUE BYPASS : Yes. With true bypass circuitry, the whammy is completely bypassed when both Whammy and Drop Tune effects are off.

Dimensions :

HEIGHT : 2.5" (64mm)
WIDTH : 6.5" (165mm)
DEPTH : 7.75" (197mm)

Audio Output :

OUTPUT TYPE : 1/4” Unbalanced TS
MAX OUTPUT LEVEL : +10 dBu
OUTPUT IMPEDANCE : 1 kΩ

Audio Input :

INSTRUMENT INPUT TYPE : 1/4” Unbalanced TS
MAX INPUT LEVEL : +5 dBu
INPUT IMPEDANCE :1 MΩ
MIDI INPUT : 5-Pin Din
