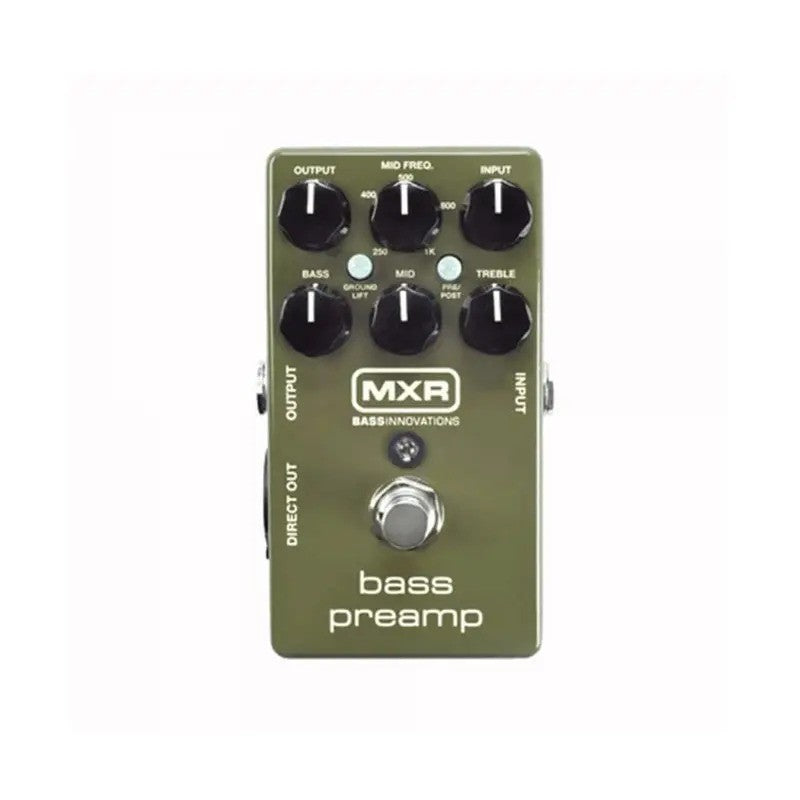

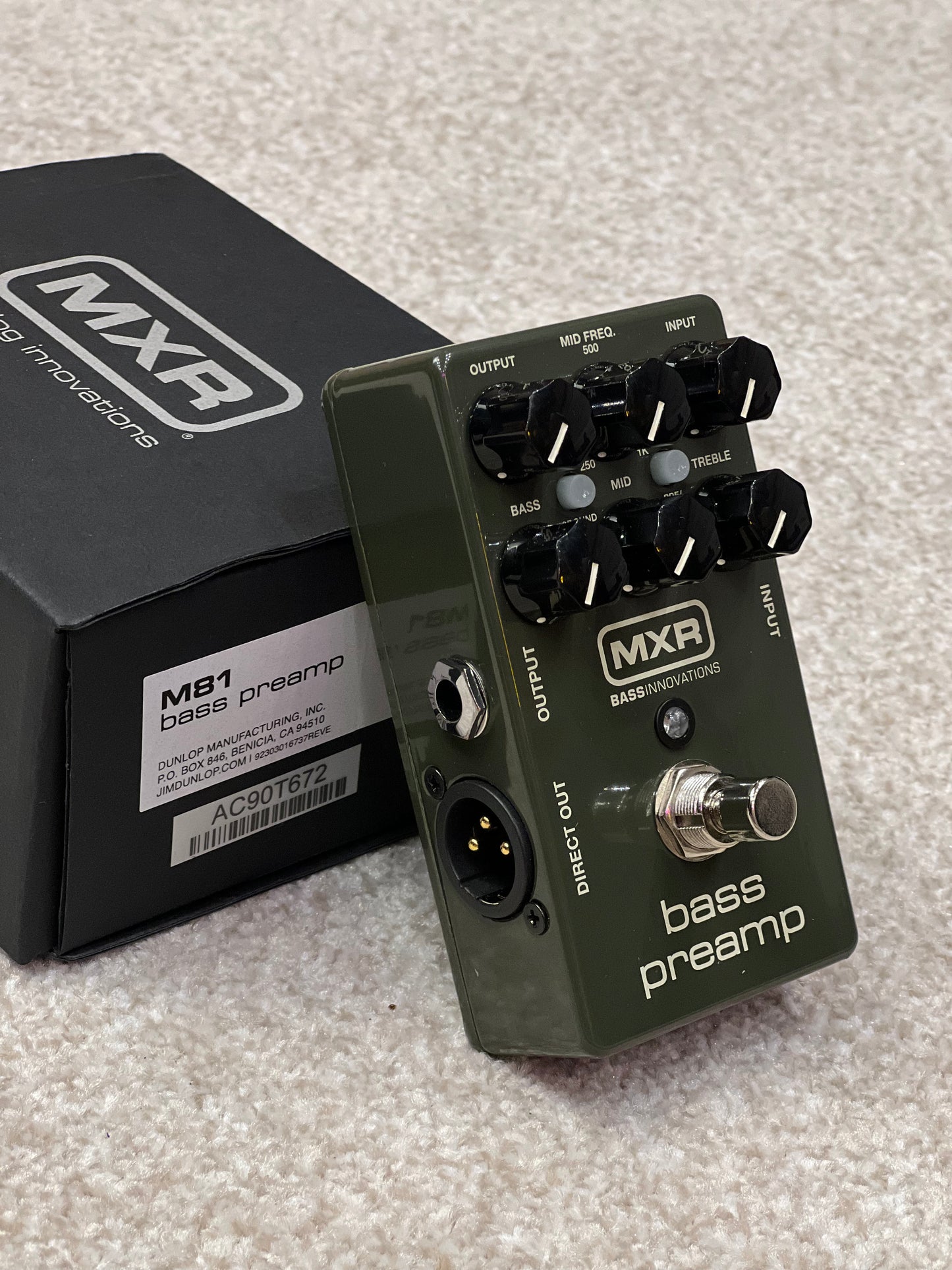

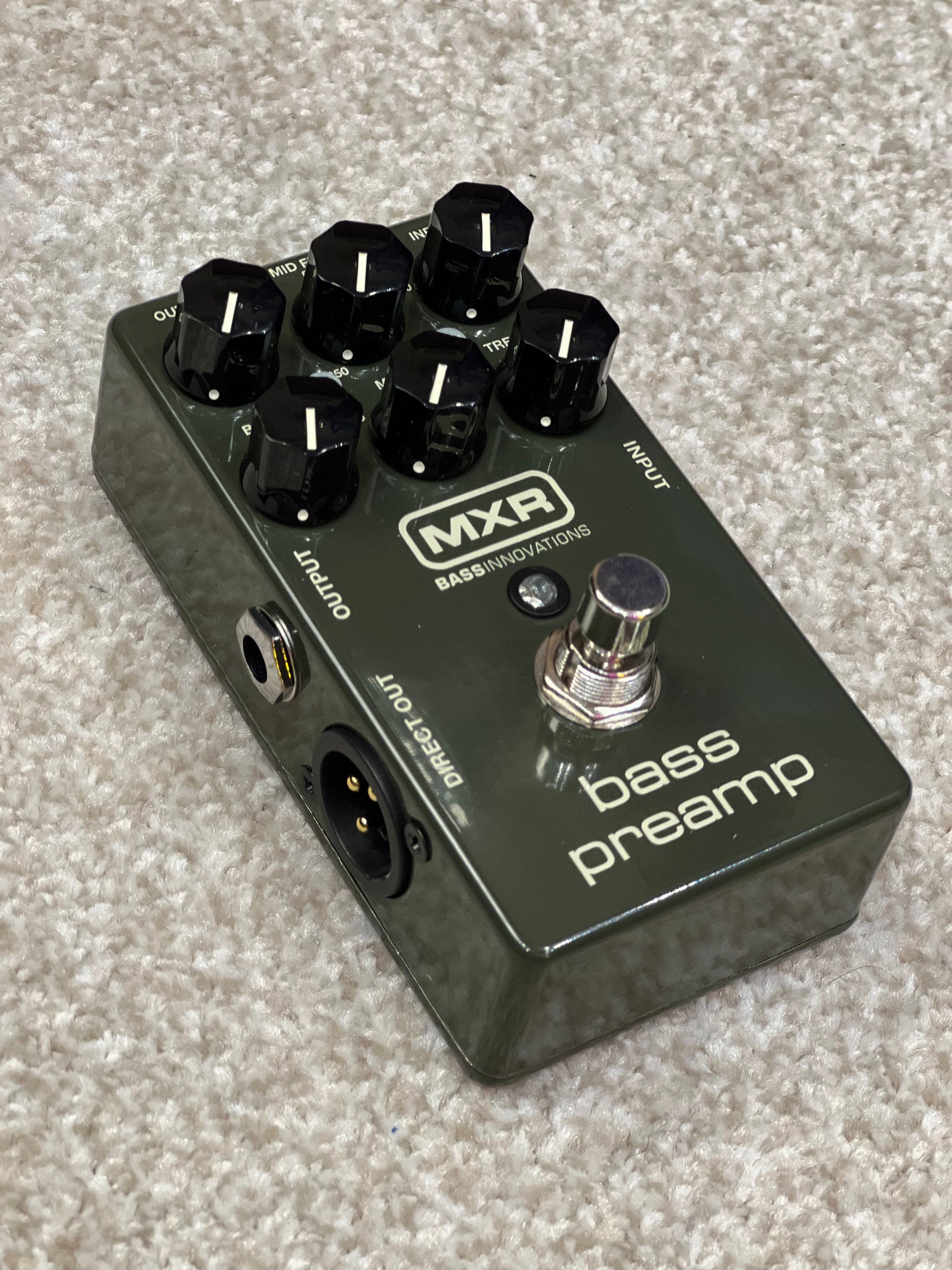

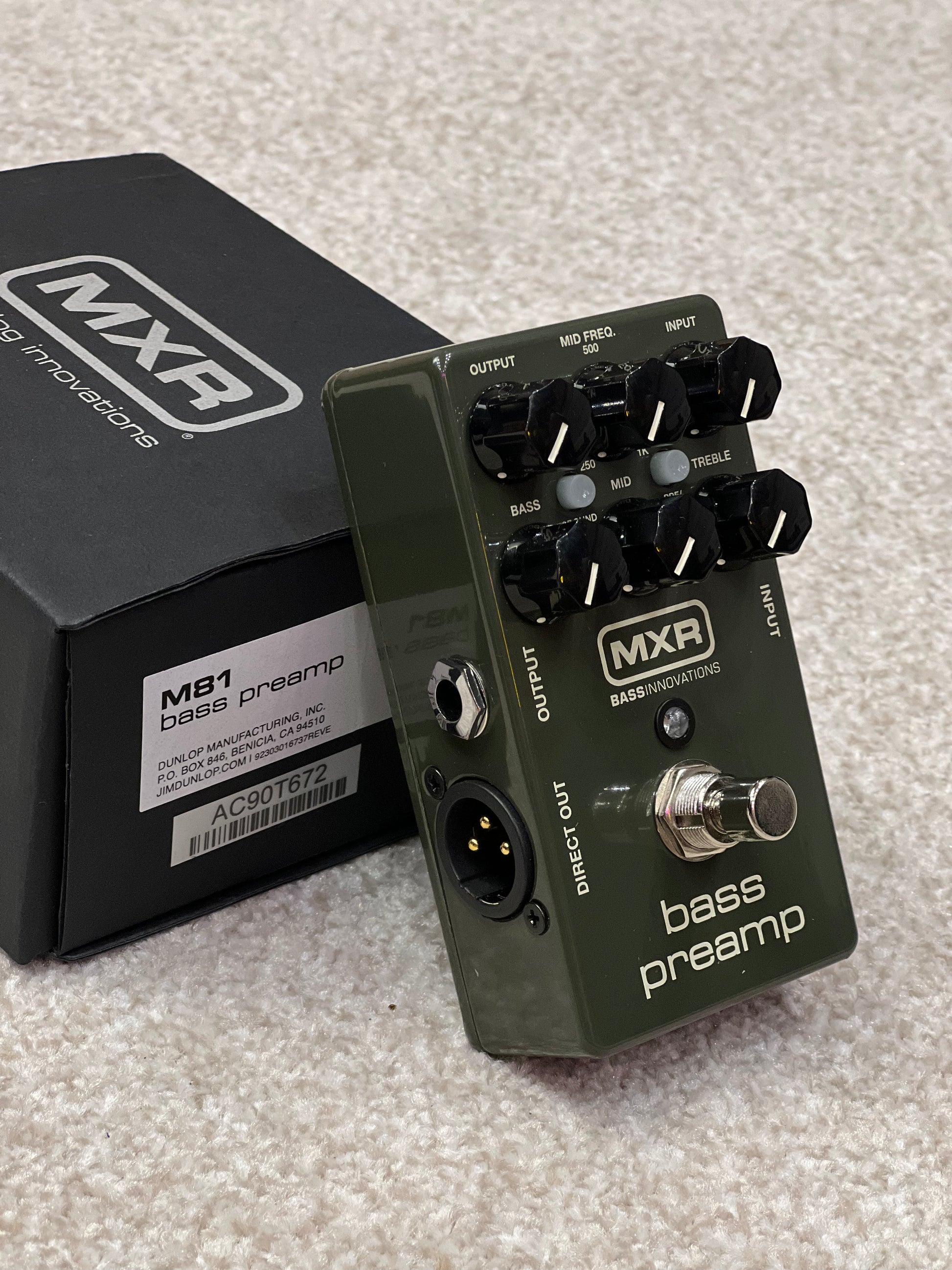

MXR M81 Bass Preamp Guitar Effects Pedal
MXR M81 Bass Preamp Guitar Effects Pedal
常规价格
Rp 2.655.000,00 IDR
常规价格
Rp 2.872.000,00 IDR
促销价
Rp 2.655.000,00 IDR
单价
/
单价
结账时计算的运费。
无法加载取货服务可用情况
The MXR Bass Preamp combines a pristine bass preamp with a studio-quality Direct Out in a Phase 90-sized box, providing clear tone without hogging precious pedalboard space. Use it to add a new voice to an old passive bass, sweeten up any amp, or put some special sauce on a particular song. Dial it in just the way you want it and send it straight to the house 'pre or post-EQ' with the built-in Direct Out.
Features:
- Separate INPUT & OUTPUT level controls
- 3-band EQ section with sweepable midrange
- Studio-quality Direct Out
- ±18 dB, 4 kHz (Treble)
| Input Impedance | 2.2 MΩ |
| 1/4” Output Impedance | 300 Ω, 40 Hz |
| Balanced Output Impedance | 120 Ω, 40 Hz |
| Maximum 1/4” Output Level | +13 dBV |
| Maximum Balanced Output Level | -2 dBV |
| Noise Floor | -98 dBV |
| THD | 0.03%, 1 kHz |
| EQ Controls | ±16 dB, 40 Hz (Bass), ±17 dB, 250 Hz to 1 kHz (Mid), |
| Input Control | Pre EQ, ±10 dB |
| Output Control | Post EQ, +20 dB |
| Bypass | True Hardwire Buffer |
| Current Draw | 8.5 mA |
| Phantom Power Current Draw | 5 mA |
| Power Supply | 9 Volts DC |
