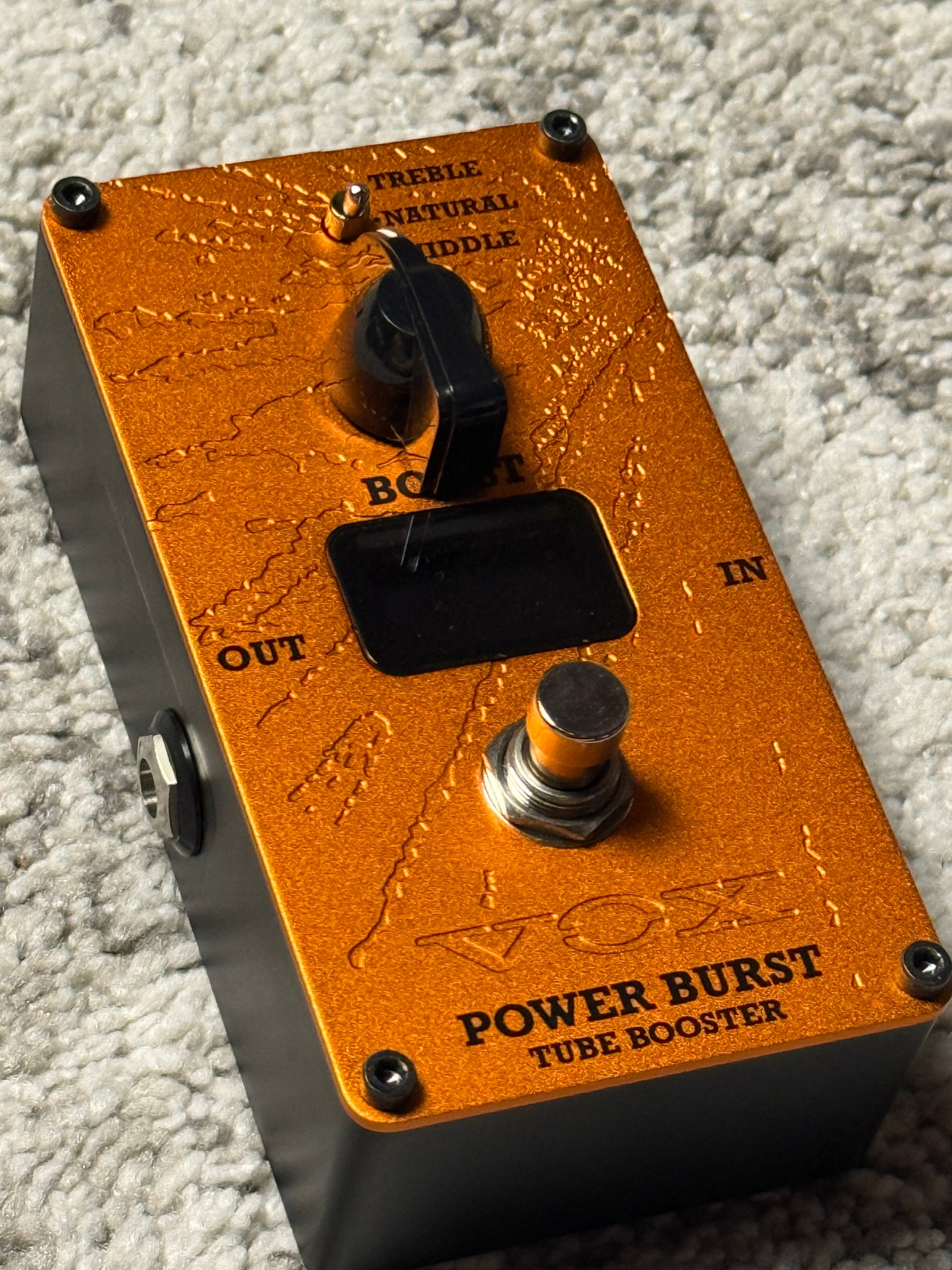

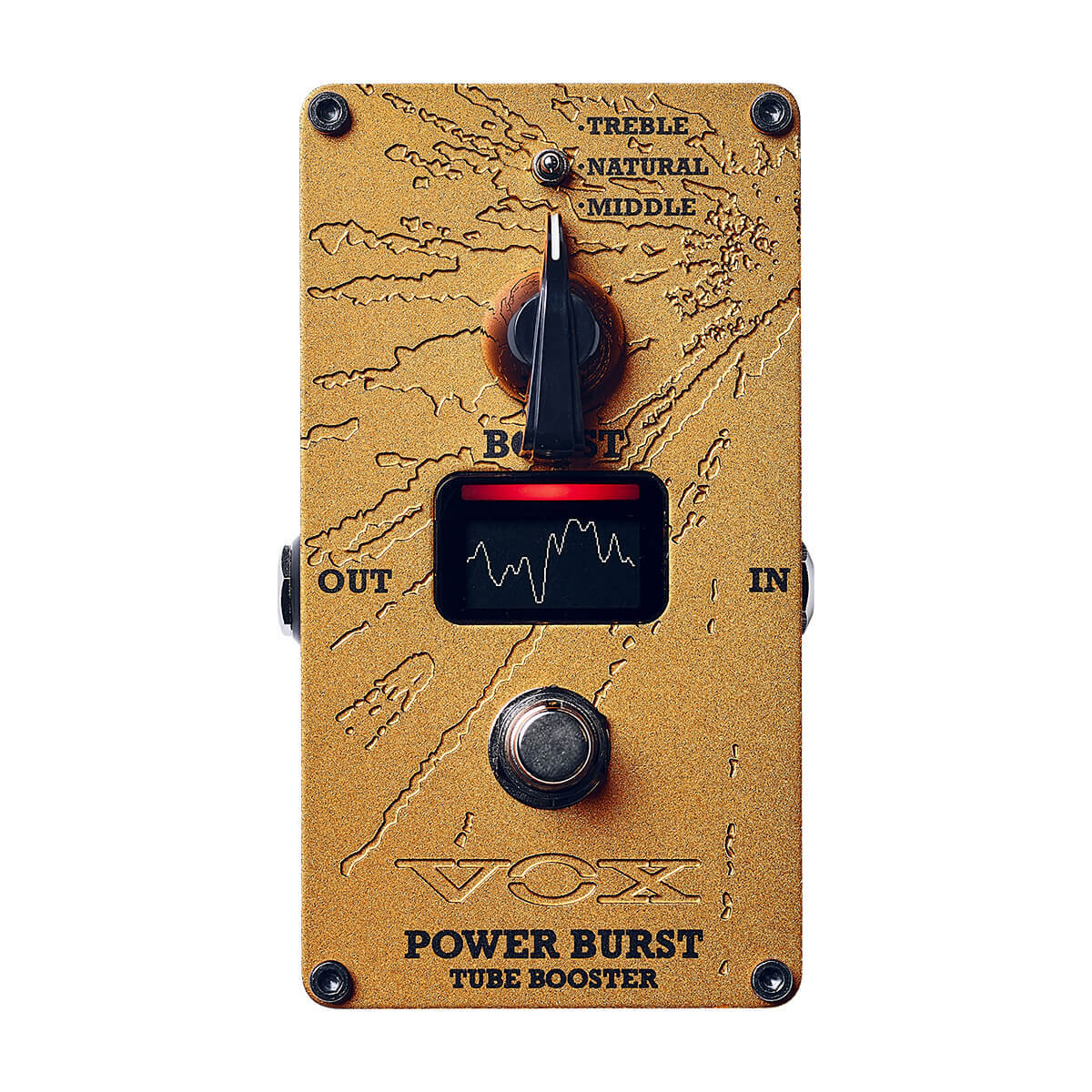

VOX VE-PB Valvenergy Power Burst Effects Pedal

Inputs/Outputs

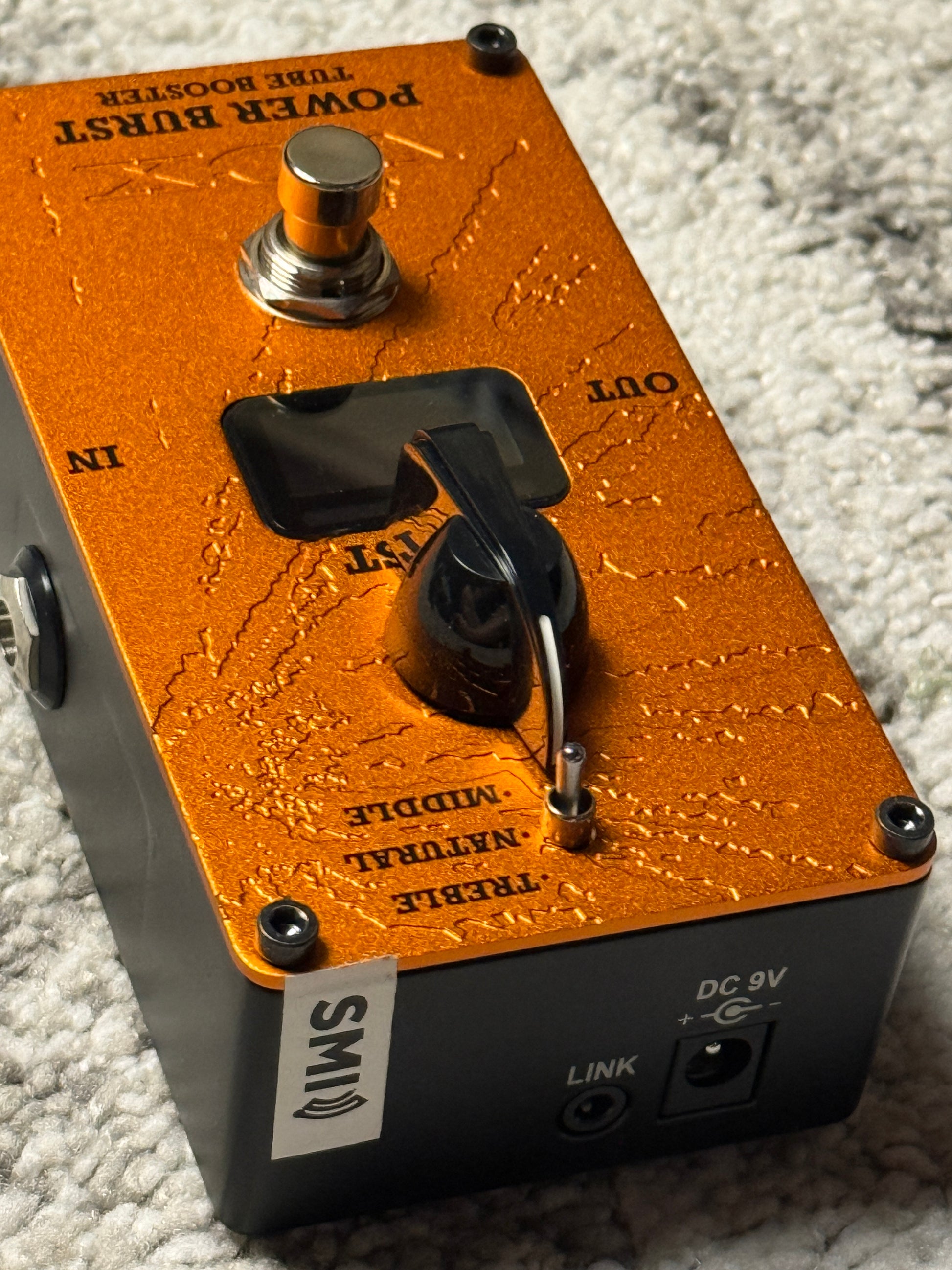

INPUT terminal (monaural phone jack), OUTPUT terminal (monaural phone jack), DC.9V terminal

Controls

BOOST Knob: Adjusts the amount of boost. Turning it to the right adds the distinctive saturation and compression typical of vacuum tubes.

Mini Switch: Offers three modes based on personal preference.

TREBLE: Emphasizes the high frequencies, suitable for situations where you want to highlight the treble.

NATURAL: Natural tube sound mode, serving as the standard mode.

MIDDLE: Emphasizes the mid-range frequencies, ideal for producing a thick sound or during solo performances.

Power Supply*

9V alkaline batteries (6LF22/6LR62) or DC.9V AC adapter (both sold separately)

*: The use of an AC adaptor is recommended as the unit’s power consumption is relatively high. Should you prefer to use batteries, please use the alkaline type.

Dimensions (W x D x H)

72mm x 120mm x 55mm (plug retracted/ VE-TS H:54mm)

Weight

300 g (excluding batteries)

Accessories

AC adapter KA181(9V) (sold separately)
